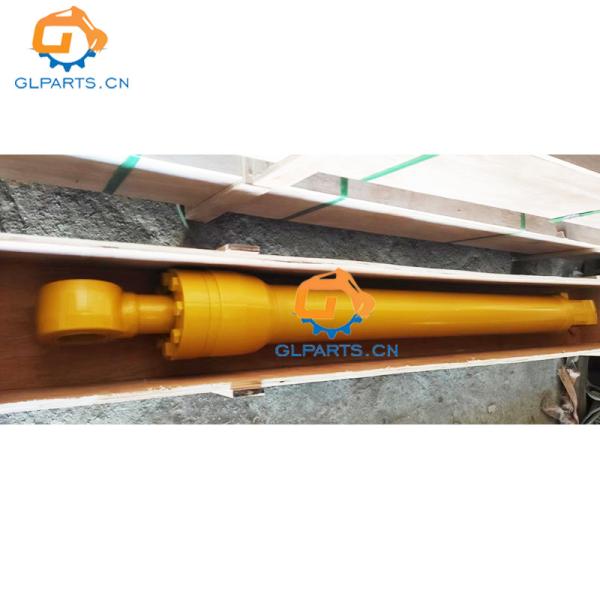

PC100-6 Excavator Bucket Hydraulic Cylinder 202-63-X2332 202-63-X2331 For Sale
The PC100-6 Hydraulic Cylinder (202-63-X2332 / 202-63-X2331) is specifically designed for small-scale excavators, providing reliable performance in a variety of demanding engineering tasks. This hydraulic cylinder is engineered to handle the diverse challenges found in construction, landscaping, and urban infrastructure projects. Whether it’s digging, lifting, or grading, the cylinder is adaptable to different worksite conditions, ensuring precise control and effective force transfer in both light and heavy-duty applications.
Product Description
| Product Name | Precision Bucket Cylinder |
| Model | PC100-6 |
| Part Number | 202-63-X2332 202-63-X2331 |
| Application | For Komatsu PC100-6 Excvator Parts |
| Temperature Range | -20-80°C |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
| OEM
| Yes |
| Service Stage | Details |
| PreSales Service | Free consultation and technical advice |
| Customization options for dimensions and performance based on customer requirements |
| InSales Service | Fast production and delivery times |
| Real-time updates on manufacturing and shipment status |
| AfterSales Service | Warranty on manufacturing defects |
| Technical support for installation and maintenance |

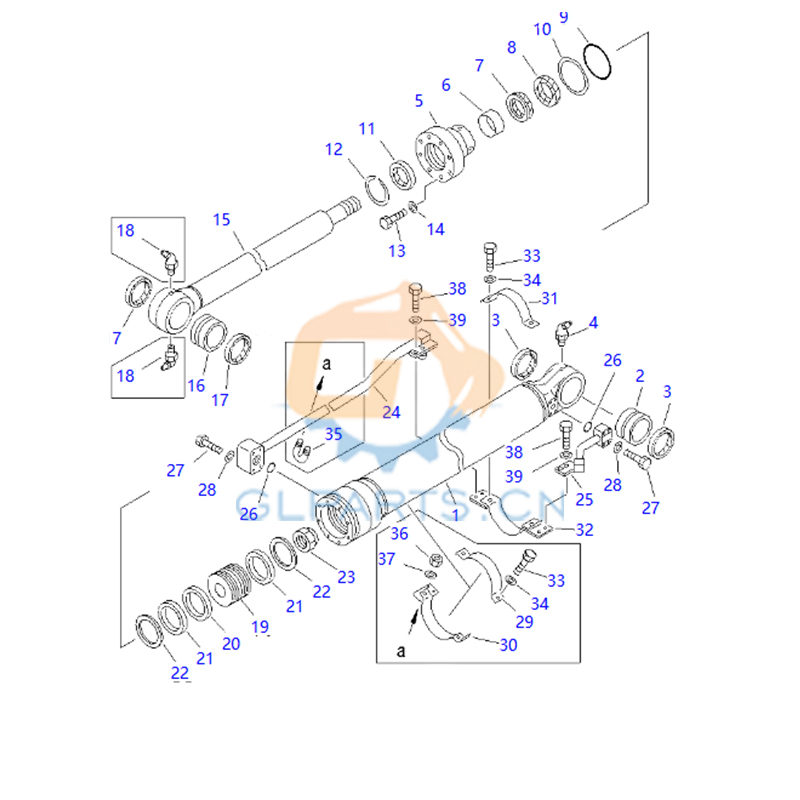

List Of Spare Parts
| Pos | Part No | Parts name |
| G1 | 202-63-X2332 | CYLINDER GROUP for Komatsu China |
| G1 | 202-63-X2331 | CYLINDER GROUP for Komatsu China |
| 202-63-02332 | CYLINDER Assy,BUCKET for Komatsu China |
| 202-63-02331 | CYLINDER Assy,BUCKET for Komatsu China |
| 1 | 202-63-74542 | CYLINDER,BUCKET for Komatsu |
| 1 | 202-63-74541 | CYLINDER,BUCKET for Komatsu |
| 2 | 707-76-65210 | BUSHING for Komatsu |
| 3 | 07145-00065 | SEAL,DUST (KIT) for Komatsu |
| 4 | 07020-00675 | FITTING,GREASE for Komatsu China |
| 5 | 707-27-90620 | HEAD,CYLINDER for Komatsu China |
| 6 | 707-52-90350 | BUSHING for Komatsu |
| 7 | 707-51-60030 | PACKING,ROD (KIT) for Komatsu |
| 8 | 707-51-60630 | RING,BUFFER (KIT) for Komatsu |
| 9 | 07000-15085 | O-RING (KIT) for Komatsu China |
| 10 | 707-35-90960 | RING,BACK-UP (KIT) for Komatsu China |
| 11 | 141-63-93270 | SEAL,DUST (KIT) for Komatsu |
| 12 | 07179-12074 | RING,SNAP for Komatsu |
| 13 | 01010-81465 | BOLT for Komatsu |
| 14 | 705-17-04980 | WASHER for Komatsu |
| 15 | 202-63-74320 | ROD for Komatsu |
| 16 | 707-76-65220 | BUSHING for Komatsu China |
| 17 | 707-77-65110 | SEAL,DUST (KIT) for Komatsu China |
| 19 | 707-36-90300 | PISTON for Komatsu China |
| 20 | 707-44-90180 | RING,PISTON (KIT) for Komatsu |
| 21 | 707-39-90110 | RING,WEAR (KIT) for Komatsu |
| 22 | 707-44-90911 | RING for Komatsu |
| 23 | 07165-14244 | NUT,NYLON for Komatsu |
| 24 | 202-63-74373 | TUBE for Komatsu China |
| 25 | 202-63-74580 | TUBE for Komatsu |
| 26 | 07000-13025 | O-RING (KIT) for Komatsu China |
| 27 | 01010-50850 | BOLT for Komatsu |
| 28 | 01643-50823 | WASHER for Komatsu |
| 29 | 707-88-96280 | BAND for Komatsu China |
| 30 | 707-88-95522 | BRACKET for Komatsu China |
| 32 | 202-63-74390 | BRACKET for Komatsu China |
| 33 | 01010-51035 | BOLT for Komatsu |
| 34 | 01643-51032 | WASHER for Komatsu |
| 35 | 07283-22236 | CLIP for Komatsu |
| 36 | 01599-01011 | NUT for Komatsu |
| 37 | 01643-31032 | WASHER for Komatsu |
| 38 | 01010-51025 | BOLT for Komatsu |
| 707-98-27600 | SERVICE KIT for Komatsu OEM |
Company Information
GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.
Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.
Factory Tour
Piston Rod Production Process
| Feature | Description |
| Material | Tempered steel |
| Surface Treatment | Induction hardened before chrome plating to prevent bending and scratching |
| Rust Resistance | Resists rust for over 100 hours in salt spray tests |
| Production Process | Produced and electroplated in-house |
| Finish | Mirror finish technology |
Automatic Welding Process
| Feature | Description |
| Welding Method | Fully automated welding for consistency and integrity |
| Craftsmanship | Lean welding craft ensures strong joint strength and eliminates defects |
| Weld Seam Quality | Weld seam matches the appearance of original parts |
| Durability | Welded parts are not easy to fall off |
