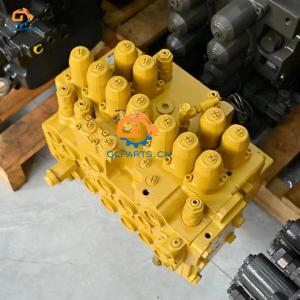

2063338 E314 314C Excavator Hydraulic Main Control Valve For Catepillar
Product Description
| Product Name | Hydraulic Control Valve For Catepillar |
| Specification | E314 314C |
| Part Number | 2063338 |
| Displacement | High Flow |
| Pressure | 20–45 MPa (depending on the model) |
| Integrated Safety Valves | Includes pressure relief valves for system protection |
| Highlight | 2063338 Hydraulic Distribution Valve |
| More Models | CAT311, CAT312, CAT313, CAT314, CAT315, CAT316, CAT318, CAT320, CAT323, CAT325, CAT326, CAT330, CAT335, CAT336, CAT349, CAT352 |
If you are interested in the following Valve models. Or do not know how to confirm your Valve model, please contact us

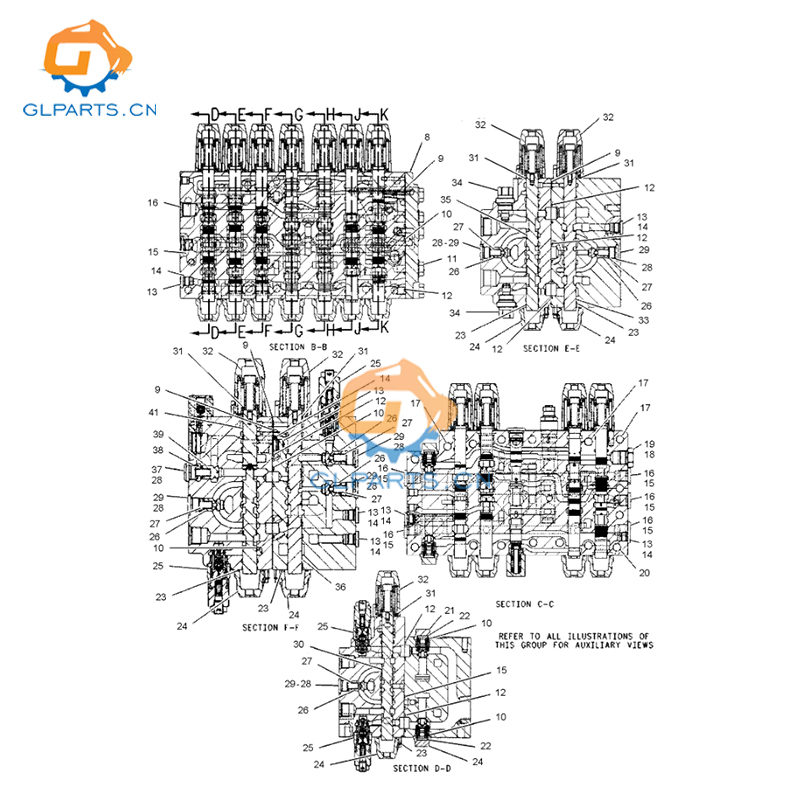

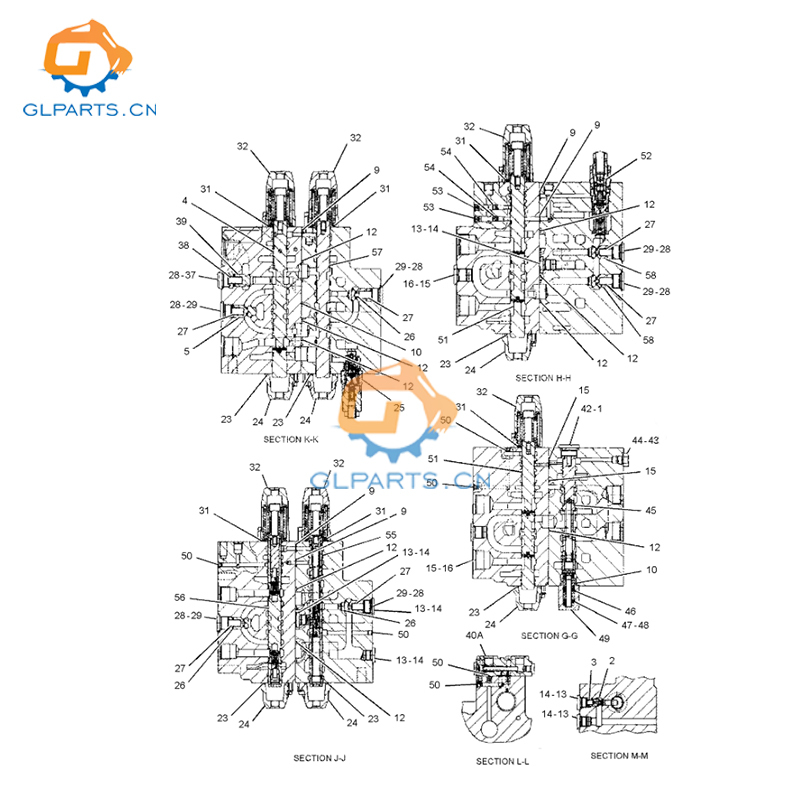

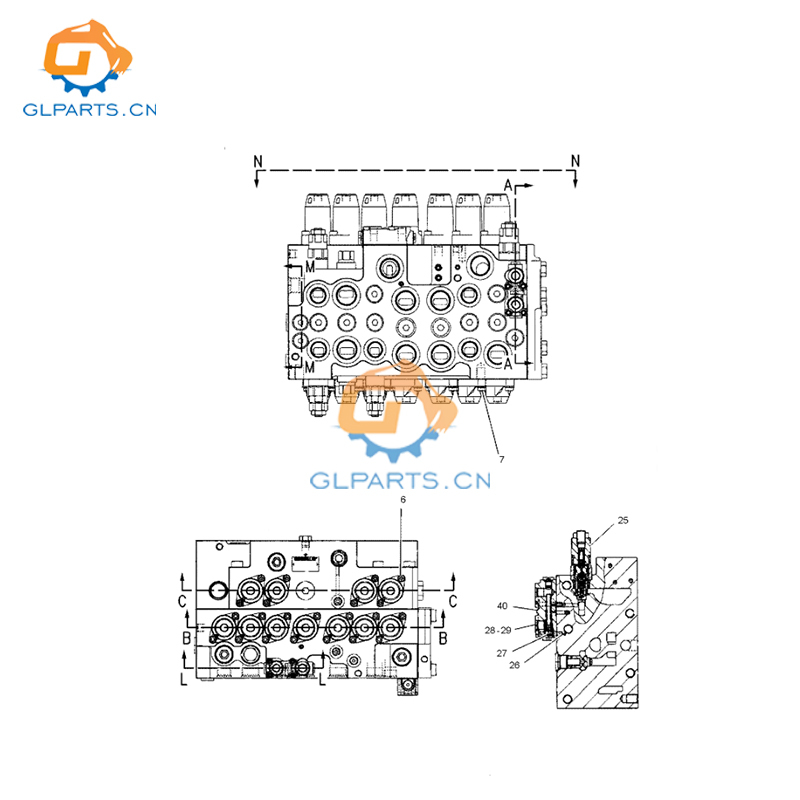

Valve List Of Spare Parts
| Pos | Part No | Parts name |
| 1 | 095-1592 | SEAL-O-RING |
| 2 | 197-0146 | SPRING |
| 3 | 197-0147 | VALVE |
| 4 | 197-0211 Y | SPOOL GP-CONTROL VALVE (STICK I) |
| 5 | 7I-7250 | VALVE-LOAD CHECK |
| 6 | 5A-3604 M | BOLT-SOCKET HEAD (M8X1.25X25-MM) |
| 7 | 197-0165 M | BOLT (M8X1.25X20-MM)(M8X1.25MM) |
| 8 | 197-0167 | PLATE |
| 9 | 095-1578 | SEAL-O-RING |
| 10 | 095-1696 | SEAL-O-RING |
| 11 | 104-8107 M | BOLT-SOCKET HEAD (M14X2X55-MM) |
| 12 | 095-1698 | SEAL-O-RING |
| 13 | 197-0145 | PLUG |
| 14 | 095-1582 | SEAL-O-RING |
| 15 | 095-1585 | SEAL-O-RING |
| 16 | 197-0272 | PLUG |
| 17 | 197-0143 M | BOLT (M14X2X95-MM) |
| 18 | 3D-2824 | SEAL-O-RING |
| 19 | 9S-4183 | PLUG (1-1/16-12-THD) |
| 20 | 197-0144 M | BOLT (M14X2X130-MM) |
| 21 | 7I-7192 | PLUG |
| 22 | 215-4855 | VALVE AS-CHECK (MAKEUP) |
| 23 | 095-1700 | SEAL-O-RING |
| 24 | 197-0168 | COVER |
| 25 | 197-0223 Y | VALVE GP-RELIEF |
| 26 | 7I-7208 | VALVE-LOAD CHECK |
| 27 | 7I-7207 | SPRING |
| 28 | 095-1586 | SEAL-O-RING |
| 29 | 7I-7206 | PLUG |
| 30 | 197-0213 Y | SPOOL GP-CONTROL VALVE (BUCKET) |
| 31 | 7I-7204 | SEAL |
| 32 | 197-0170 | COVER |
| 33 | 197-0175 Y | SPOOL GP-CONTROL VALVE (STICK II) |
| 34 | 197-0225 | PLUG AS |
| 35 | 197-0173 Y | SPOOL GP-CONTROL VALVE (WORK TOOL) |
| 36 | 201-9376 Y | SPOOL GP-CONTROL VALVE (BOOM II) |
| 37 | 131-5767 | PLUG |
| 38 | 105-7405 | SPRING |
| 39 | 131-5768 | VALVE-LOAD CHECK |
| 40 | 197-0169 | VALVE AS (STICK DRIFT REDUCTION) |
| 40A | 197-0169 | VALVE AS (BOOM DRIFT REDUCTION) |
| 41 | 197-0178 Y | SPOOL GP-CONTROL VALVE (BOOM I) |
| 42 | 7I-7235 | PLUG |
| 43 | 3J-1907 | SEAL-O-RING |
| 44 | 9S-4191 | PLUG (9/16-18-THD) |
| 45 | 201-9271 | SPOOL AS |
| 46 | 103-8413 | ROD |
| 47 | 103-8412 | SPRING |
| 48 | 103-8411 | SPRING |
| 49 | 197-0166 | PLUG |
| 50 | 7I-8084 | PLUG |
| 51 | 197-0219 Y | SPOOL GP-CONTROL VALVE (TRAVEL) |
| 52 | 206-3165 Y | VALVE GP-RELIEF |
| 53 | 095-0965 | PLUG |
| 54 | 7I-7241 | ORIFICE |
| 55 | 197-0217 Y | SPOOL GP-CONTROL VALVE (STICK REGENERATION) |
| 56 | 206-3345 Y | SPOOL GP-CONTROL VALVE (SWING) |
| 57 | 201-9392 Y | SPOOL GP-CONTROL VALVE (SWING PRIORITY) |
| 58 | 215-4872 | VALVE |
| | M | METRIC PART |
| | Y | SEPARATE ILLUSTRATION |
More Control Valves We Provided
Z-324-150-00002 P-C06-3064 P-03-12-026
P-07–17-011 P-C06-3065 P-03-12-027
P-107-13-004 P-C06-1006 B-G057820-00135
Z-324-140-00004 P-C06-3067 P-03-12-028
Z-324-140-00006 P-C06-3068 P-03-12-029
P-07–17-012 P-C06-3069 B-G057850-00024
Z-324-120-00054 P-C06-3070 B-G057850-00031
Z-324-120-00055 P-C07-3001 P-03-12-030
Z-324-120-00056 P-C07-3002 B-G057820-00087
Z-325-120-00029 P-C07-3003 B-G057850-00020
Z-324-120-00061 P-C07-4001 B-G057860-00032
Z-324-120-00058 P-C07-4003 P-03-05-001
Z-324-120-00057 P-C07-4002 B-G057850-00014
P-107-13-012 P-P01-C05-0001 P-03-05-002
Z-324-080-00004 P-08-13-002 P-03-05-003
P-325-140-00000 Z-26C-130-Z0001 B-G057820-00060
P-Z10-150-Z001 P-Z09-130-0002 Z-15E-04F-00008
P-Z10-120-0001 Z-26C-130-00002 Z-932-14B-00010
P-Z10-150-Z002 Z-29C-180-00025 Z-932-14B-00012
Z-325-080-00001 P-08-19-033 Z-932-14B-00013
Z-325-090-00016 P-08-19-034 Z-932-14B-00015
Z-325-090-00007 Z-29C-300-00042 Z-932-14B-00016
Z-325-090-00011 Z-29C-300-00043 Z-130-12Z-00014
Z-325-100-00006 Z-29C-300-00045 Z-936-120-00140
Z-325-08A-00003 Z-29C-300-00044 Z-130-12Z-00035
P-04-01-013 Z-29C-300-00016 P-03-10-024
Z-14E-010-00005 Z-29C-300-00053 Z-13E-100-00037
Z-14E-040-00016 Z-29C-300-00048 Z-13E-10F-00019
P-04-02-020 P-08-19-038 Z-130-150-00017
Z-14H-010-00016 Z-29C-130-00045 P-03-10-026
W-03-00038 P-08-19-040 Z-130-150-00004
Z-14H-010-00015 P-08-19-041 Z-130-150-00019
Z-14H-010-00001 Z-29C-080-00041 P-03-10-027
Z-14H-010-00012 Z-29C-130-00077 Z-130-150-00027
Z-14H-010-00020 Z-29C-130-00132 Z-130-100-00002
