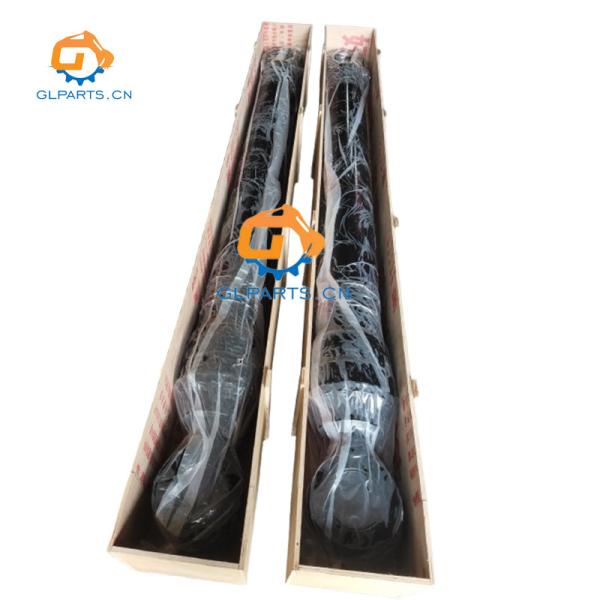

R480LC-9 ARM Cylinder Assy 31QB-50130 Hydraulic Cylinder Hyundai Excavator Parts
Product Description
| Product Name | Arm Excavator Hydraulic Cylinder |
| Model | R480LC-9 |
| Temperature Range | -30-100°C |
| Part Number |
31QB-50130 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
| OEM | Yes |

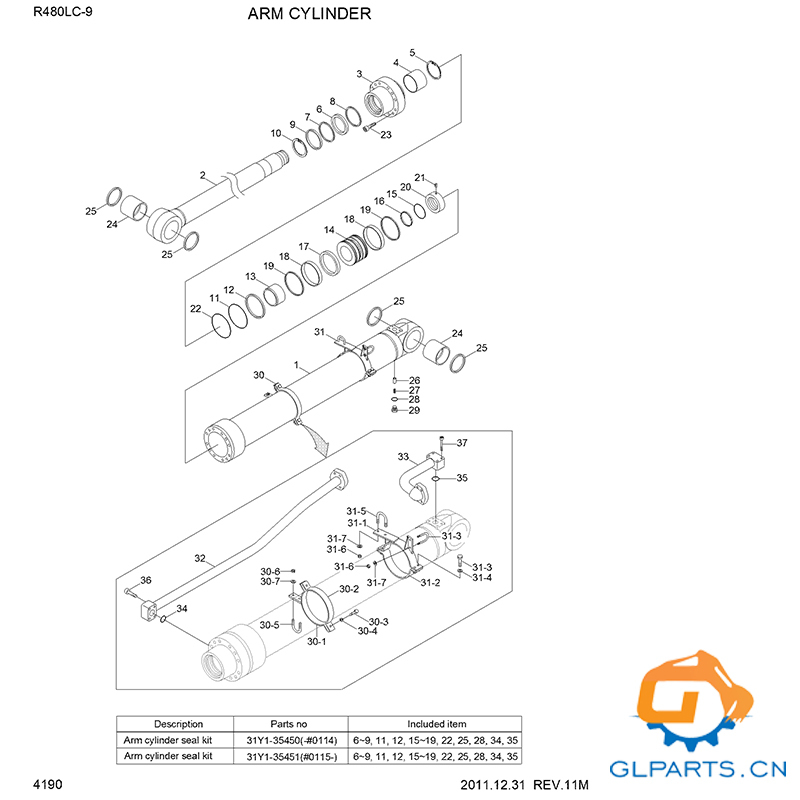

List Of Spare Parts
31QB-50130
| Pos. | Part No | Parts Name |
| *. | 31QB-50130 | ARM CYLINDER ASSY |
| *-1. | 31Y1-35220 | ARM CYL SUB ASSY |
| 1 | 31Y1-35230 | TUBE ASSY |
| 2 | 31Y1-35290 | ROD ASSY |
| 3 | 31Y1-35320 | GLAND |
| 4 | S732-130060 | BUSHING-DD2 |
| 5 | Y191-137000 | RING-SNAP |
| K6. | Y220-130113 | SEAL-ROD |
| K7. | Y180-130120 | RING-BACK UP |
| K8. | Y240-130012 | RING-BUFFER |
| k8. | 31YC-99J20 | RING-BUFFER |
| K9. | Y110-130011 | WIPER-DUST |
| 10 | Y190-146000 | RING-SNAP |
| K11. | S632-180004 | O-RING |
| K12. | 31YC-CG180 | RING-BACK UP |
| 13 | 31YC-28150 | RING-CUSHION |
| 14 | 31Y1-35350 | PISTON |
| K15. | S632-105004 | O-RING |
| K16. | S642-105003 | RING-BACK UP |
| K17. | Y420-190000 | SEAL-PISTON |
| K18. | Y310-190003 | RING-WEAR |
| K19. | Y440-190002 | RING-DUST |
| 20 | 31YC-68110 | NUT-LOCK |
| 21 | S114-100164 | SCREW-SET |
| 21 | S114-100164 | SCREW-SET |
| K22. | 31YC-99HE0 | O-RING |
| 23 | S109-240954 | BOLT-SOCKET |
| 24 | 61Q6-97910 | BUSH-PIN |
| 24 | 61QH-73820 | BUSH-PIN |
| K25. | Y020-120000 | SEAL-DUST,DLI,KPU |
| 26 | 31YC-2A010 | VALVE-CHECK |
| 27 | 31YC-99071 | SPRING-COIL |
| K28. | S631-014004 | O-RING |
| 29 | P220-110103 | PLUG-HEX |
| 30 | 31Y1-35370 | BAND |
| 30-1 | 31Y1-26360 | BAND SUB ASSY |
| 30-2 | 31YC-31490 | BAND |
| 30-3 | S015-120452 | BOLT-HEX |
| 30-4 | S411-120002 | WASHER-SPRING |
| 30-5 | S071-024330 | U-BOLT |
| 30-6 | S201-101002 | NUT-HEX |
| 30-7 | S411-100002 | WASHER-SPRING |
| 31 | 31Y1-35390 | BAND ASSY-B |
| 31-1 | 31Y1-35400 | BAND SUB ASSY |
| 31-2 | 31Y1-35410 | BAND SUB ASSY |
| 31-3 | S015-120452 | BOLT-HEX |
| 31-4 | S411-120002 | WASHER-SPRING |
| 31-5 | S071-024330 | U-BOLT |
| 31-6 | S201-101002 | NUT-HEX |
| 31-7 | S411-100002 | WASHER-SPRING |
| 32 | 31Y1-35420 | PIPE ASSY-R |
| 33 | 31Y1-35440 | PIPE ASSY-B |
| K34 | Y171-024004 | O-RING |
| K35 | Y171-027004 | O-RING |
| 36 | S107-120604 | BOLT-SOCKET |
| 37 | S107-120654 | BOLT-SOCKET |
| K | 31Y1-35450 | SEAL KIT |
| K | 31Y1-35451 | SEAL KIT |
*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated
